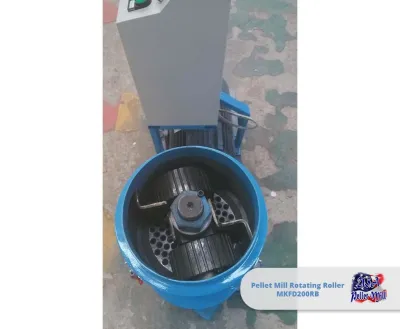

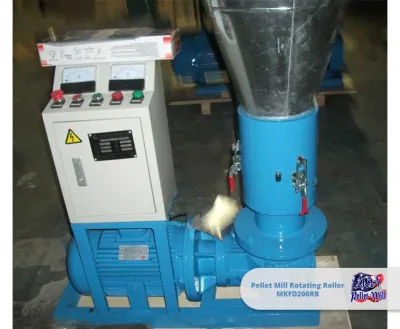

Pellet Mill Rotating Roller MKFD200RB
$4672.00
Quantity
Ideal for making pellets of alfalfa, forage, biomass and/or balanced animal feed.
Technical Specifications
Model: MKFD200RB
Type: Pellet Mill Rotating Roller
Capacity: 220-265 lbs/hr (Wood) / 330-440 lbs/hr (Feed)
Power: 7.5 kW
Power Type: Electric
Dimensions: 46 x 21 x 30 inch
Weight: 770 lbs
Description
The rotating roller pellet mill is a variation of the fixed die pellet mill. This type of pellet mill is specialized for the production of biomass fuel for farm or industrial use. This pelleting machine can be used to process a variety of materials including sawdust, straw, bamboo shavings, bagasse, alfalfa, peanut shells, and chaff.

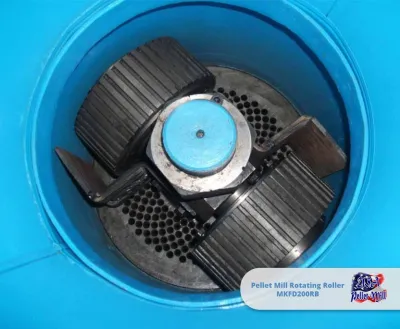

The main advantage of using a rotating roller over having the die rotate and the rollers in a fixed position in the pellet mill, is that as the rollers rotate over the static die they facilitate the movement and stirring of materials, while also providing a stronger compression and ultimately producing a premium pellet from almost all biomass or organic material.
Special features:
1. The gearbox is made of high quality steel, which provides great durability, increase efficiency and capacity, while reducing noise and temperature in the gearbox.
2. The main shaft has been designed to withstand heavy loads and strong axial forces, increasing its durability.
3. Using a roller with a large diameter this pellet mill yields a higher pelletization rate, more pellet uniformity and increased pellet strength.

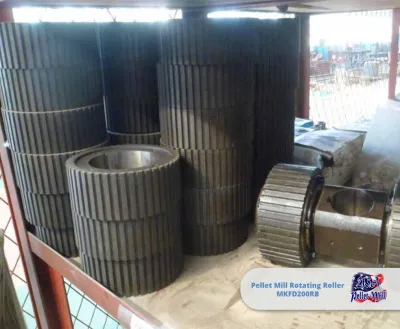

4. Both rollers and dies have wear-resistant surfaces. In addition, since both sides of the die can be used it lasts much longer.
5. All bearings are sealed to prevent the dust contamination.
This machine is shipped with the user's manual and toolkit for operation and lubrication. The machine includes one flat Die to produce 6mm diameter pellets.
We also have available for sale a selection of dies to produce pellets with the following diameters: 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, and 10 mm.
Customization & Services
Can USA Pellet Mill build a complete pellet or feed production line?
Yes. We design and supply turn-key production lines that include hammer mills, mixers, pellet mills, conveyors, coolers, dryers, and packaging systems. Each project is tailored to your raw material, production goals, and available space.
Do you offer installation and operator training?
Yes. We provide remote or on-site installation support, including detailed assembly guidance, operational training, and maintenance instructions. Our goal is to help every customer start production efficiently and safely.
Can the machines be customized to meet specific requirements?
Absolutely. We can modify capacity, motor type, voltage, die size, and layout to meet your specific production or regional electrical standards. Custom configurations ensure maximum performance and energy efficiency.
Do you supply spare parts and accessories?
Yes. USA Pellet Mill maintains a large inventory of dies, rollers, bearings, belts, and motors compatible with all our models. We offer fast worldwide shipping to minimize downtime.
Do you provide technical support after purchase?
Yes. We provide lifetime technical support for all equipment. Our engineers can assist through video calls, phone, email, or remote diagnostics. We’re committed to helping you keep your operation running smoothly.
Can you help design a plant layout or production flow?
Yes. Our engineering team can create 2D and 3D plant layouts optimized for material flow, energy use, and worker safety. We help you plan efficient pellet, feed, or briquette facilities from start to finish.
Do you offer consulting services for new pellet or feed businesses?
Yes. We provide project consulting to help new entrepreneurs estimate production costs, ROI, equipment selection, and market opportunities in the biomass or feed sector.
